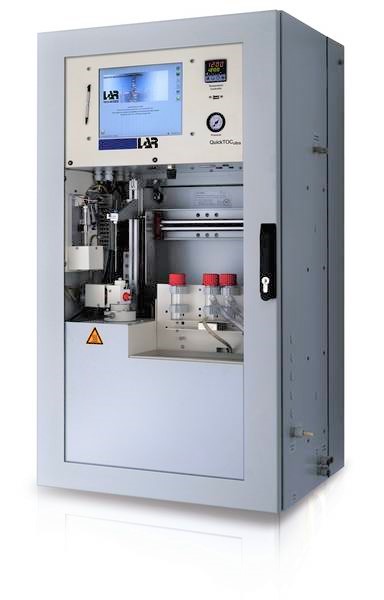

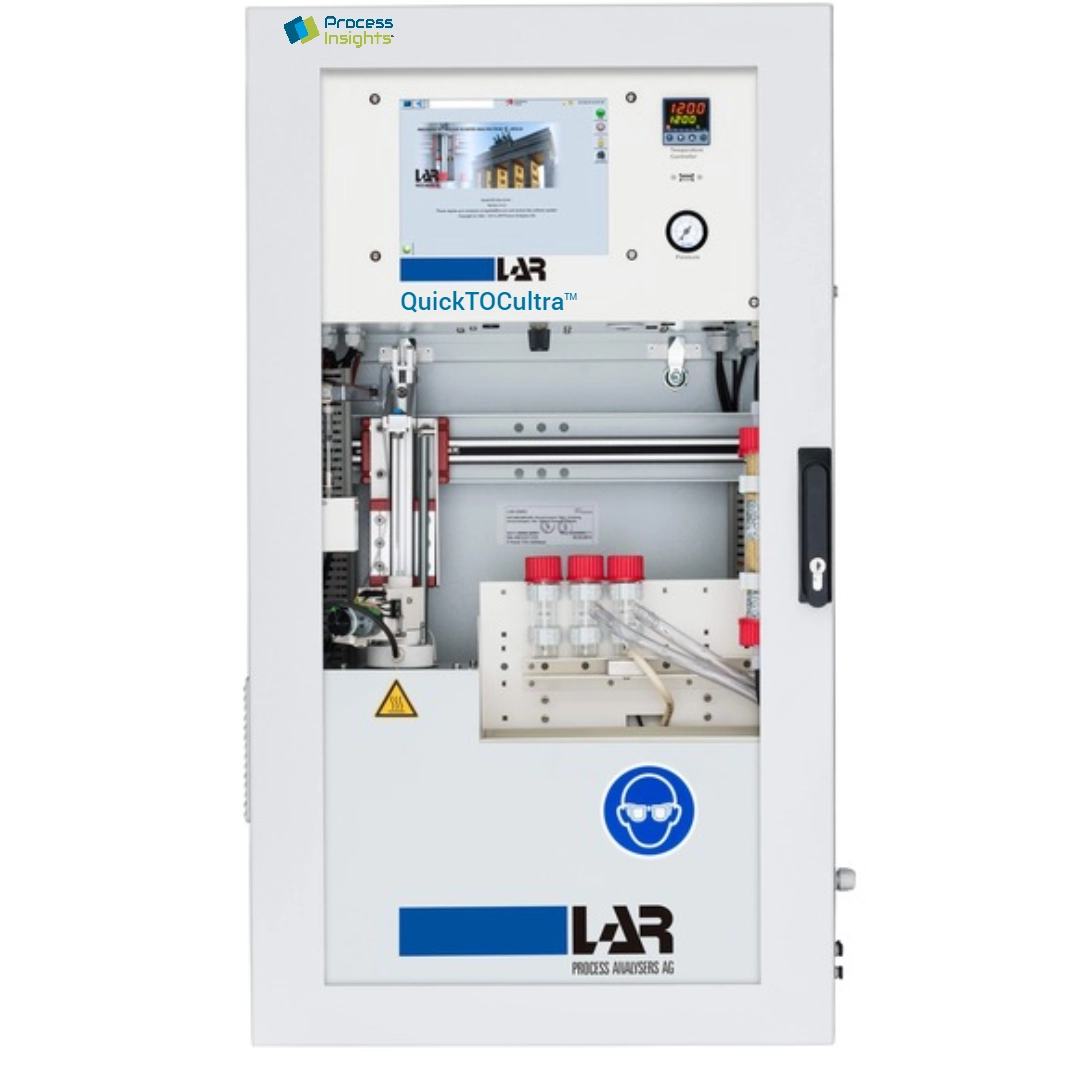

QuickTOCultra
QuickTOCultra
QuickTOCultra
QuickTOCultra

QuickTOCultra

제품정보
Equipment Devices and Data Output
• High resolution and back lit TFT touchscreen graphic display, 10.4"
• Self explanatory software, Auto start function
• Standard data interfaces to office

제품 상세설명

Measurement Technique and Sample Preparation

Measurement Method
Thermal oxidation at 1,200°C
Measurement Ranges
0.1-50,000 mg/L TOC, with optional, dilution up to 500,000 mg/l possible
Parameters
TOC, TC, TIC, combinations with COD, TNb possible
Response Time TOC
3 minutes
Sample Preparation
FlowSampler - Maintenance-free particle separator, optional homogeniser for the continuous homogenisation of samples


Dimensions and Weight

HousingSteel IP 54, powdercoated
Options
Stainless steel, IP 65, EXp Zone 1 and 2 for T3, T4 classes (ATEX, IECEx)
Dimensions
W 600/848 x H 1,062 x D 608 mm
Weight
from 125 kg (standard housing)


Electric and Hydraulic Specifications

Inflow and Outflow
Tube 4,8 mm ID, Tube 8 mm ID, Tube 12 mm ID
Power Supply
230/115 V~, 50/60 Hz
Analogue Output0/4-20 mA
Serial Interface
RS 232
Safety
2/6 A internal, 16 A external
Internet Capability
LAN, Option for WLAN
Option
Remote control via TCP/IP protoco

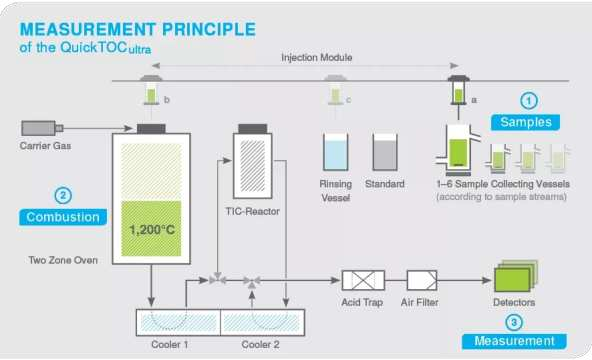

Measurement Principle
