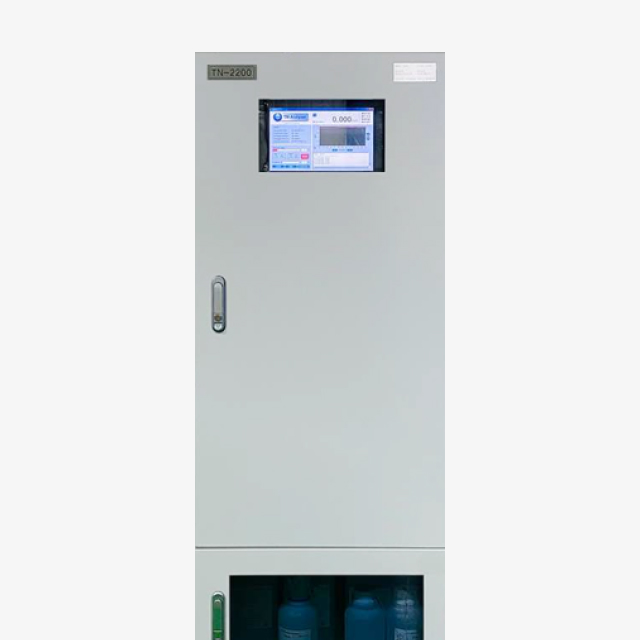

Water Quality TMS Monitor

TN 2200

Product Features

• Total nitrogen analysis is possible within an hour

• TMS connection and various external output options (RS-232C, 4-20 mA, DC 24V external output, alarms)

• The same analysis method as the Water Pollution Process Test Method (same oxidation temperature, reagent composition, etc.)

• History report Storage for alarms, consumable replacements, and errors

• Automatic shutdown function in case of device error or alarm

• Remote control function (remote control of instrument start, stop, etc.)

• Self checking function (diluted water and pollution level and lamp status display)

• Wide range of application (sewage, wastewater, industrial process management, lake water, river water, etc.)

Product Information

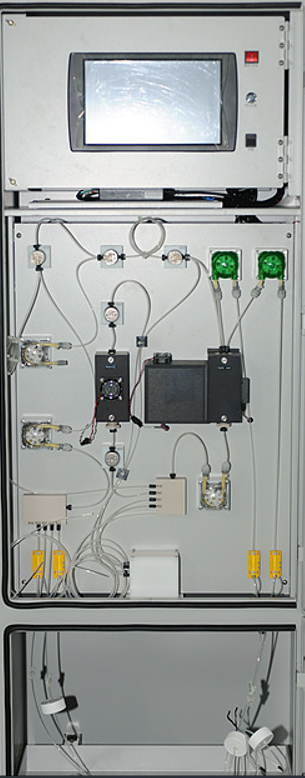

Key Features: Monitor, reagent injection, heated oxidation reactor, optical system part, drain pump, multi-channel pump, reagent storage

Main Specifications: • Application of automatic calibration technology, automatic input of optimal calibration line, and calibration solution validation function
• Sample metering repeatability: < 0.5%
• Reagent consumption: 1.2 L/month of potassium persulfate solution and 1.8 L/month of hydrochloric acid solution
• Using ultra pure water : 20 L/Month (without dilution)
• Waste liquid extraction: 7 L/month

Product Specifications

Measurement Range	0~100 mg/L	Data Storage	Store PC HDD, USB memory stick available
Minimum unit of scale	0.001 mg/L	Status Output	Normal, Calibrating, Operating error, Temporary pause
Measurement method	Ultraviolet absorbance intensity method	Reagent Replacement Cycle	4 weeks
Oxidation method	120°C Alkaline Potassium Persulfate Method	Electrical Output Signal	4-20mA, RS-232C, TCP/IP
Repeatability, Accuracy, Precision	±2% of F.S	Power Supply	AC 110/220V, 50~60Hz, Power consumption: 100VA
Heating method	120℃ Direct heating	Temperature Range / Humidity	5~40°C, 85% RH or less

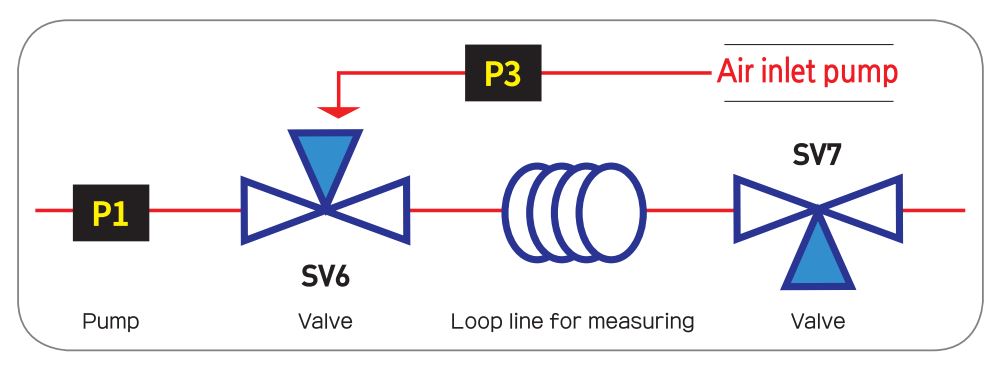

Sample / Reagent measurement	Using a peristaltic pump sample loop Line measuring	Material	Steel, Powder Coating
Channel	5 Port Multi Valve	Dimensions	550(W) x 430(D) x 1,560(H) mm
Cooling method	Air cooling via fan	Dimensions	550(W) x 430(D) x 1,560(H) mm
Light Source / Detector	Deuterium Lamp / Photodiode Detector	Weight	80 Kg
Measurement time	60 min, 1 measurement (measurement cycle can be adjusted)	Operating Temperature	5~40 °C
Display method	Color LCD (10.2") Touch Screen	Etc	Auto Start function in case of power failure, Calibration solution automatic verification function

Core Technology for TN 2200

• Installation of a small heating reactor

Classification	Before	After
Reactor volume	100 ml	10 ml
Heating method	Indirect heating	Direct heating
Internal temperature difference	7 ~ 10°C	< 1°C
Cooling method	Using water	Using air
Reactor cell material	pyrex	Quartz
Reach time at 120°C	8 min	2 min

• Increased maintenance convenience

- Application of automatic correction convenience

(Automatic input of optimal calibration curve)

- Designed for easy replacement of consumables

• Obtain accurate measuring and dilution algorithm
