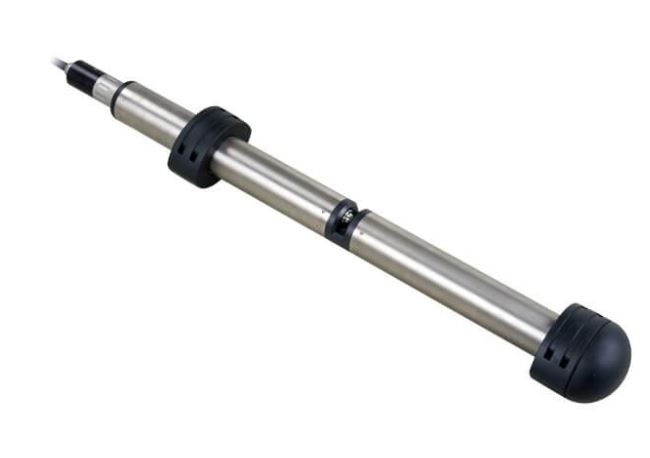

CarboVis / NiCaVis

Product Information
Key Features
• An accurate measurement
• Low operating costs
• Easy to operate
• Excellent durability

Detailed Product Description

Easy to Use

It has a built-in ultrasonic cleaning system that does not require maintenance and is easy to use for a long time.

In addition, attachments such as dust and microbial membranes can be easily cleaned during use.


Excellent durability

Advanced materials such as titanium and Peek are non-corrosive and durable.


Product Specifications

Maker
WTW
Measurement Principle
Spectral measurement in the UV-VIS range (200-720 nm)/ UV range of 200-390 nm
CarboVis 705 IQ
CarboVis 701 IQ
NiCaVis 705 IQ
NiCaVis 701 IQ NI
NiCaVis 705 IQ NI
Applications
Urban sewage, wastewater, sewage
Urban sewage, wastewater, sewage, reservoirs
Urban sewage, wastewater, sewage
Urban sewage, wastewater, sewage, reservoirs
Urban sewage, wastewater, sewage

Measurement Range

(in standard solution)


TOC : 1 ... 500.0 mg/l

SAC : 0.1 ... 600.0 1/m

COD : 0.1 ... 800.0 mg/l

TOC : 5... 2500.0 mg/l

SAC : 0.5... 3000.0 1/m

COD : 0.5 ... 4000.0 mg/l

TOC : 1...500.0 mg/l

SAC : 0.1 ... 600.0 1/m

NO3-N : 0.01... 25.00 mg/l

COD : 0.1 ... 800.0 mg/l

NO2-N : 0.1... 25 mg/l

NO3-N : 0.1 ... 100 mg/l

COD : 0.5... 4000.0 mg/l

NO2-N : 0.01... 5 mg/l

NO3-N : 0.01 - 25mg / l

COD : 0.1 ... 800 mg/l

Measurement Range (option)
Inlet : 0... 3000 mg/l
TSS Effluent : 0.0... 900.0 mg/l TSS
Inlet : 0 ... 15 g/l
TSS Effluent : 0 ... 4.5 g/l TSS



Material

Housing: Titanium 3.7035, PEEK

Window: Sapphire glass

Pressure Resistance
≤ 1 bar
Operating Conditions

Operating Temp. : 32 ℉ ··· 113 ℉ (0 ℃ ··· + 45 ℃)

Storage Temp. : 14 ℉ ··· 122 ℉ ( -10 ℃ ··· + 50 ℃)

Flow Speed
≤ 3 m/s
Weight
Approx. 8.82 lb (4 kg)
pH Range
pH 4 ... pH 12
Accuracy
± 3% of ± 0.5 mg/l (in standard solution)
Salt Concentration
< 5000 mg/l (Chloride)
Protection Rating
IP 68
Dimensions
31.57 x 2.36 in. (802 x 59.9 mm, length x diameter)
Warranty
1.5 years
