MLSS(SS)

Product Information

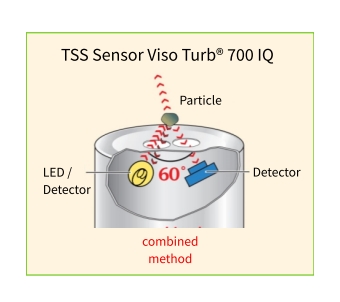

Principle of Suspended Solids Measurement: As the concentration of suspended solids increases, particles begin to interfere with each other.
When turbidity becomes high, light particles cannot reach the detector properly, or reflected light is not detected accurately, resulting in distorted measurements.
The 90° scattered light method is only suitable for low turbidity levels.

Therefore, WTW uses two different measurement methods depending on the concentration

•Scattered light method for low concentrations
• Back scattered light method for high concentrations

Product Specifications ViSolid 700 IQ (SW*)

Maker	WTW
Parameter	g/l SiO₂ / % SiO₂	g/I TSS / % TSS
Measurement Range	0.01 ... 300 g/l SiO₂ 0.003 ... 1000 g/L TSS	0.001 ... 39% SiO₂ 0.0003... 100% TSS
Applications	Matrix type 1: aeration tank of wastewater treatment process > 3 g/l TSS return sludge Matrix type 2: Digestive sludge
Calibration	Calibration based on typical sludge characteristics: Matrix Type 1 & 2 User Calibration: Adjustable based on process conditions – 1-point or multi-point calibration
Process Consistency per DIN SS-402 part S1	Matrix Type 1: < 2% Matrix Type 2: < 4%
Resolution	Auto-selected based on measuring measurement range, 0.1 mg/l... 0.1 g/l	0.1 mg/l... 0.1 g/l
Automatic Cleaning	An ultrasonic cleaning system
Sens Check Function	Monitors sensor optics and detects potential contamination or hardware faults
Operating Conditions	Operating Temperature: 32 ... 140 °F (0 ... 60 °C) Storage Temperature: 23 ... 149 °F (-5... +65 °C)
Material Specifications	Optical Window: Sapphire Sensor Body: V4A stainless steel (1.4571)
Pressure Resistance	Up to 10 bar (including sensor cable)
Power Consumption	1.5 Watt
Dimension	14.37 × 1.57 in (365 × 40 mm, L × Ø), includes SACIQ sensor cable
Weight	Approx. 2.18 lb (990 g, excluding cable)Weight
Protection Rating	IP 68
Warranty	1.5 years
